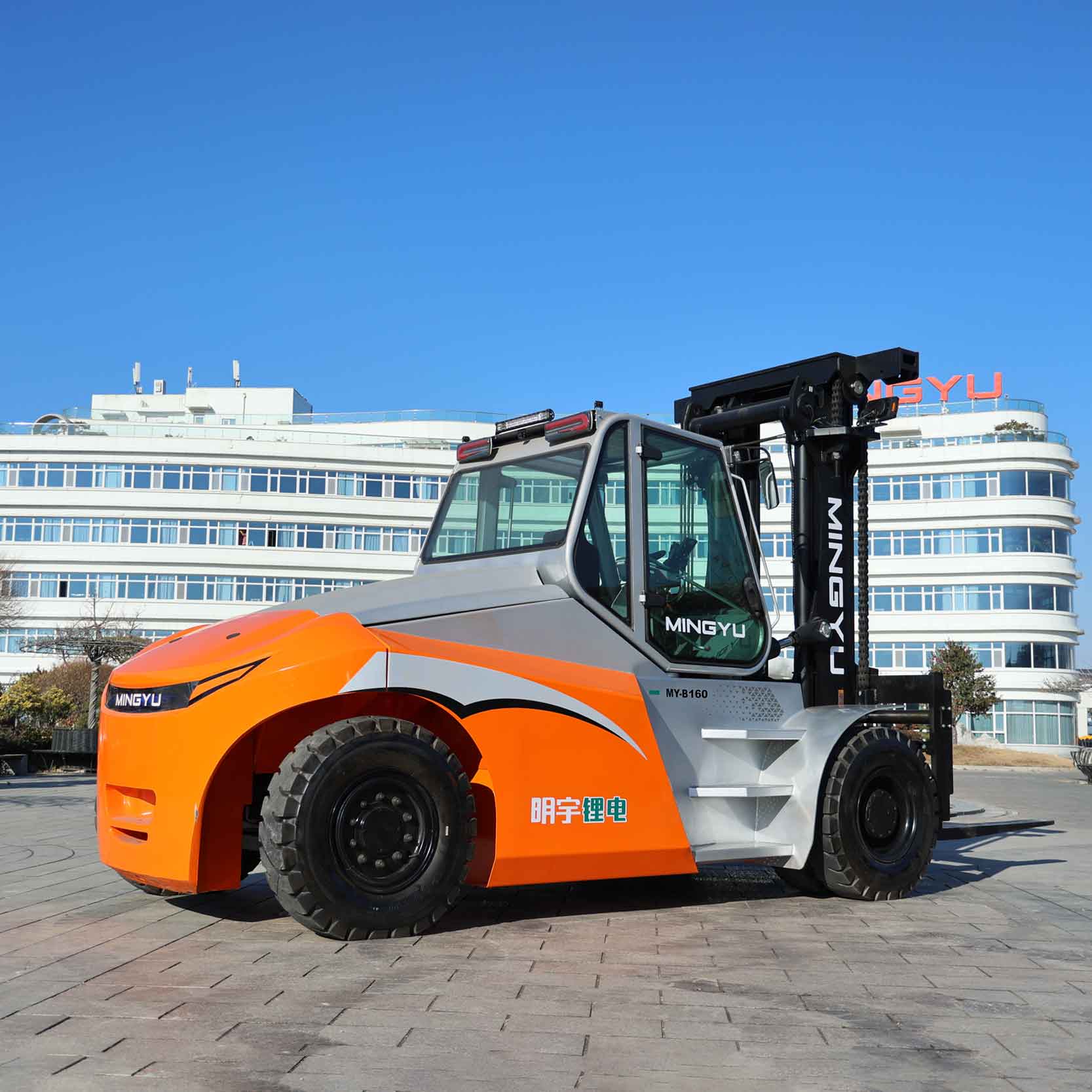

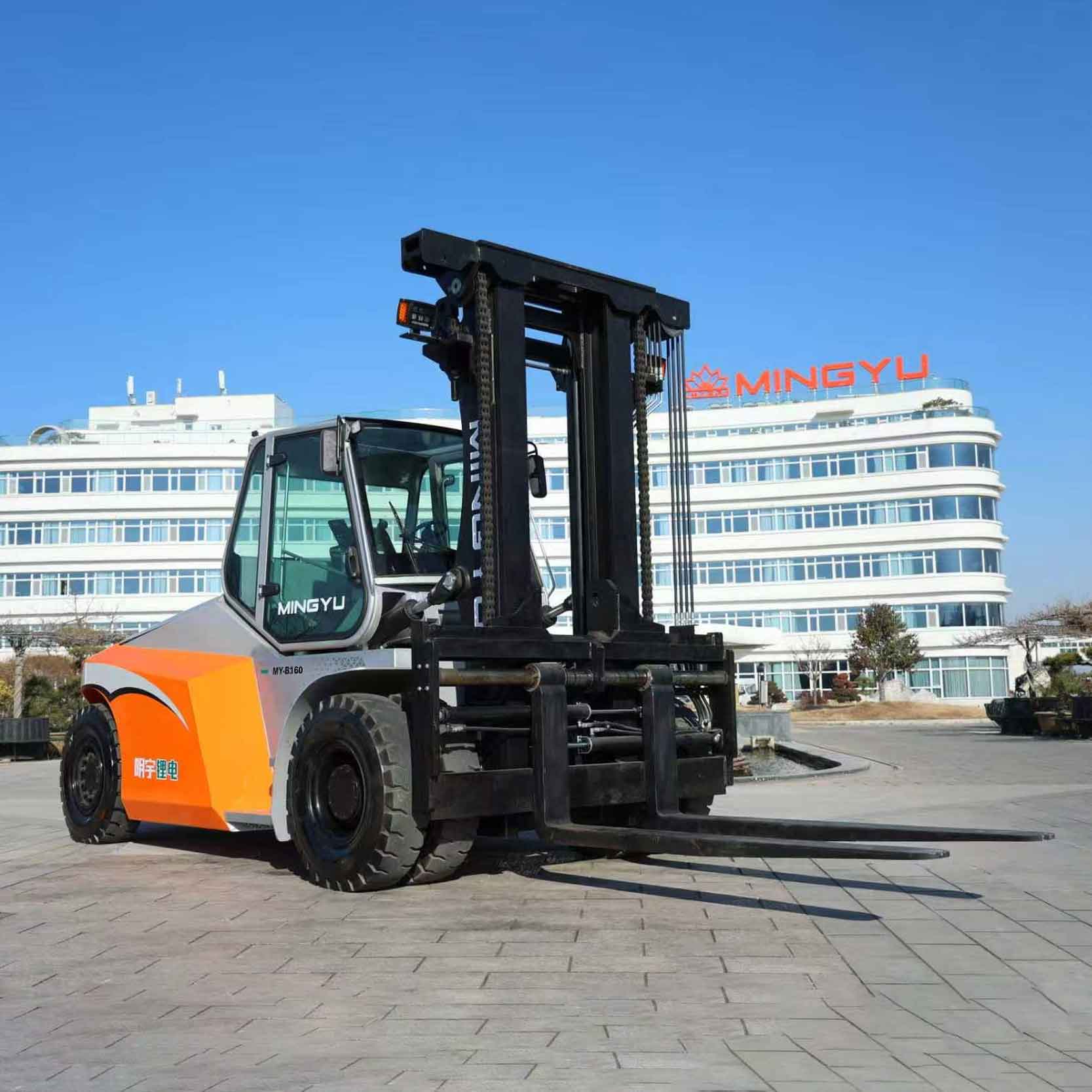

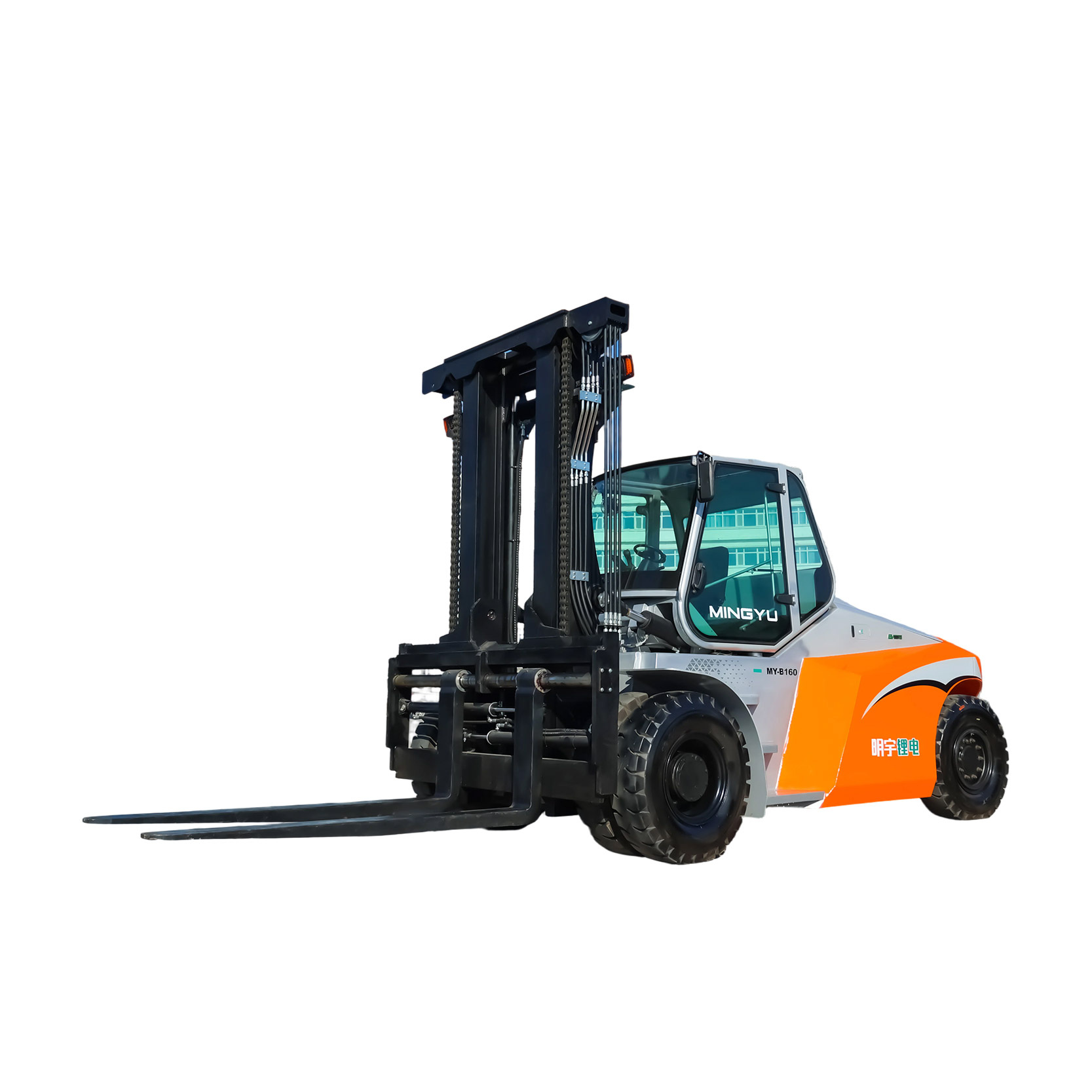

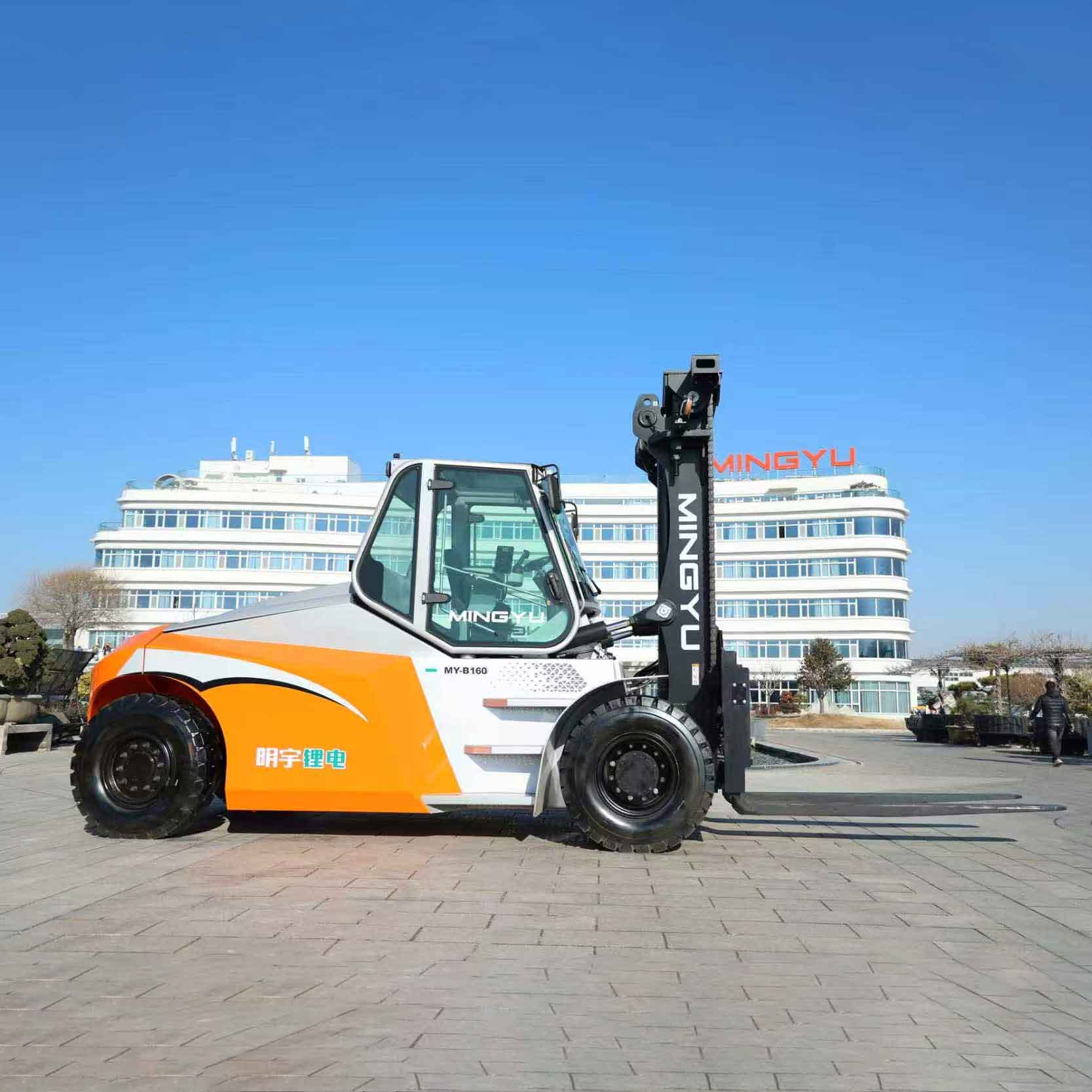

The Lithium-ion Forklift – B160 is a 16000kg heavy-load Li-ion forklift with a 618V/228Ah battery, 4000mm lifting height, 130kW drive motor, and wet brakes for demanding industrial handling.
| Parameter | Unit | Specification | Parameter | Unit | Specification |
|---|---|---|---|---|---|
| Power Type | Li-ion | Maximum Turning Radius | mm | 5015 | |
| Rated Lifting Capacity | kg | 16000 | Maximum Right-Angle Channel Width | mm | / |
| Load Center Distance | mm | 900 | Gantry Inclination Angle | degree | 5/10 |
| Operation Mode | Driving style | Maximum Lifting Speed Without Load | mm/s | 400 | |
| Overall Length With Fork | mm | 7890 | Maximum Lifting Speed Under Full Load | mm/s | 350 |
| Overall Length Without Fork | mm | 5450 | Maximum Operating Speed Without Load | km/h | 22 |
| Overall Width | mm | 2720 | Maximum Operating Speed Under Full Load | km/h | 20 |
| Mast Height Not Lifted | mm | 3700 | Maximum Climbing Slope Under Full Load | % | 18 |
| Overhead Guard Height | mm | 3120 | Overall Weight Without Load | kg | 22370 |
| Maximum Height During Operation | mm | 5700 | Number of Wheels: Drive / Steering | 4/2 | |
| Wheelbase | mm | 3750 | Tyre Type: Front / Rear | Pneumatic | |
| Front Overhang | mm | 840 | Front Tyre Size | 12.00-20-20PR | |
| Rear Overhang | mm | 860 | Rear Tyre Size | 12.00-20-20PR | |
| Front Track Width | mm | 2046 | Service Brake | Wet brake | |
| Rear Track Width | mm | 2216 | Parking Brake | Wet brake | |
| Ground Clearance | mm | 268 | Battery Voltage / Capacity | V/Ah | 618V/228Ah |
| Standard Lifting Height | mm | 4000 | Charger | 60kW | |
| Free Lifting Height | mm | 0 | Drive Motor Power | kW | 130 |
| Fork Adjustment Range | mm | / | Oil Pump Motor Power | kW | 80 |
Shandong MINGYU Heavy Industry Machinery Co., Ltd. manufactures wheel loaders, forklifts, telehandlers, excavators, backhoe loaders and electric equipment for construction, agriculture, logistics, rental and dealer markets worldwide.
MINGYU provides professional equipment configuration and shipping support according to each customer’s working conditions and project requirements. Before delivery, we help confirm the suitable model, power type, attachments, spare parts, and loading plan to ensure the machine is ready for practical use.
For export orders, our team can arrange secure packaging, container loading, and logistics solutions to support safe and efficient transportation. From equipment preparation to shipment, we focus on making the delivery process clear, reliable, and worry-free for customers worldwide.
MINGYU offers wheel loaders, electric loaders, diesel forklifts, lithium-battery forklifts, off-road forklifts, telehandlers, excavators, and backhoe loaders for construction, logistics, mining, municipal projects, ports, and other working conditions.
Diesel machines are suitable for heavy-duty outdoor work and long operating hours. Electric machines are a good choice for low-noise, low-emission, indoor, or environmentally sensitive applications.
Off-road forklifts are designed for rough ground such as construction sites, gravel roads, farms, timber yards, and mining areas. They offer stronger mobility than standard forklifts on uneven surfaces.
A telehandler provides higher lifting reach and forward extension, making it suitable for high-position loading, material handling over obstacles, and multi-angle operations. Standard forklifts are mainly used for regular pallet handling on flat ground.
Yes. Customers can choose suitable models or configurations based on load capacity, lifting height, power type, working environment, attachments, and application requirements.
Yes. MINGYU provides pre-sales consultation, model selection support, technical assistance, spare parts supply, maintenance guidance, warranty support, and logistics solutions.
