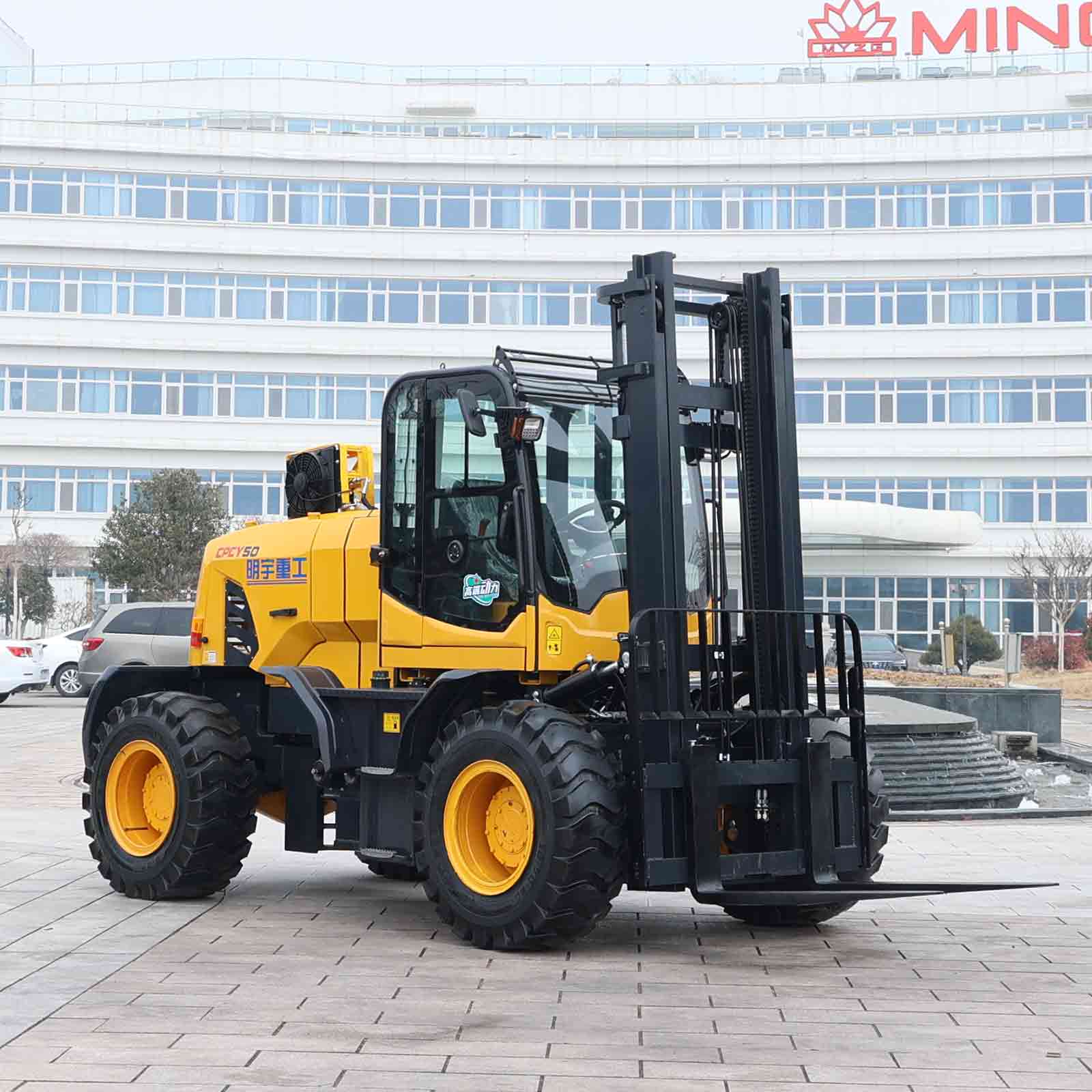

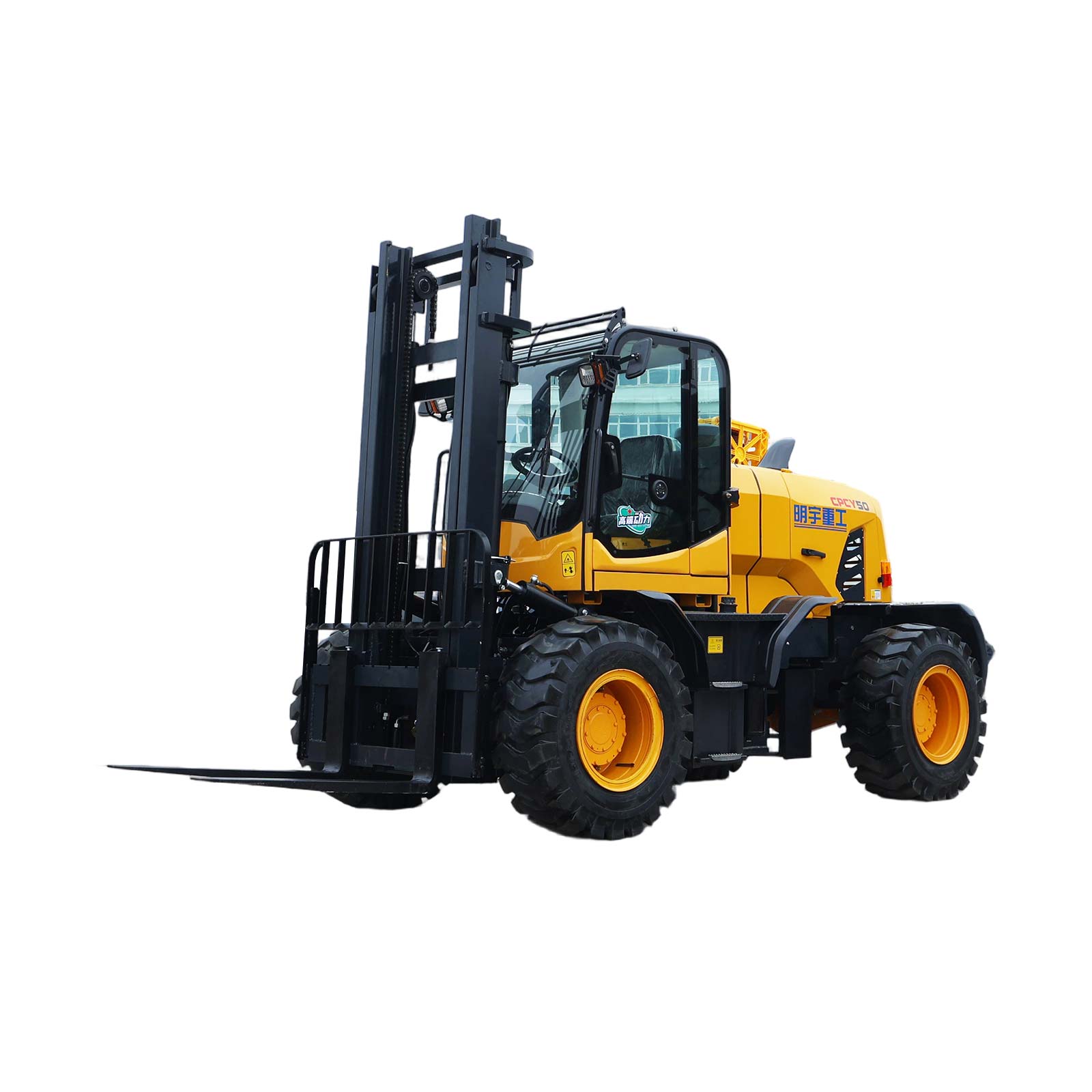

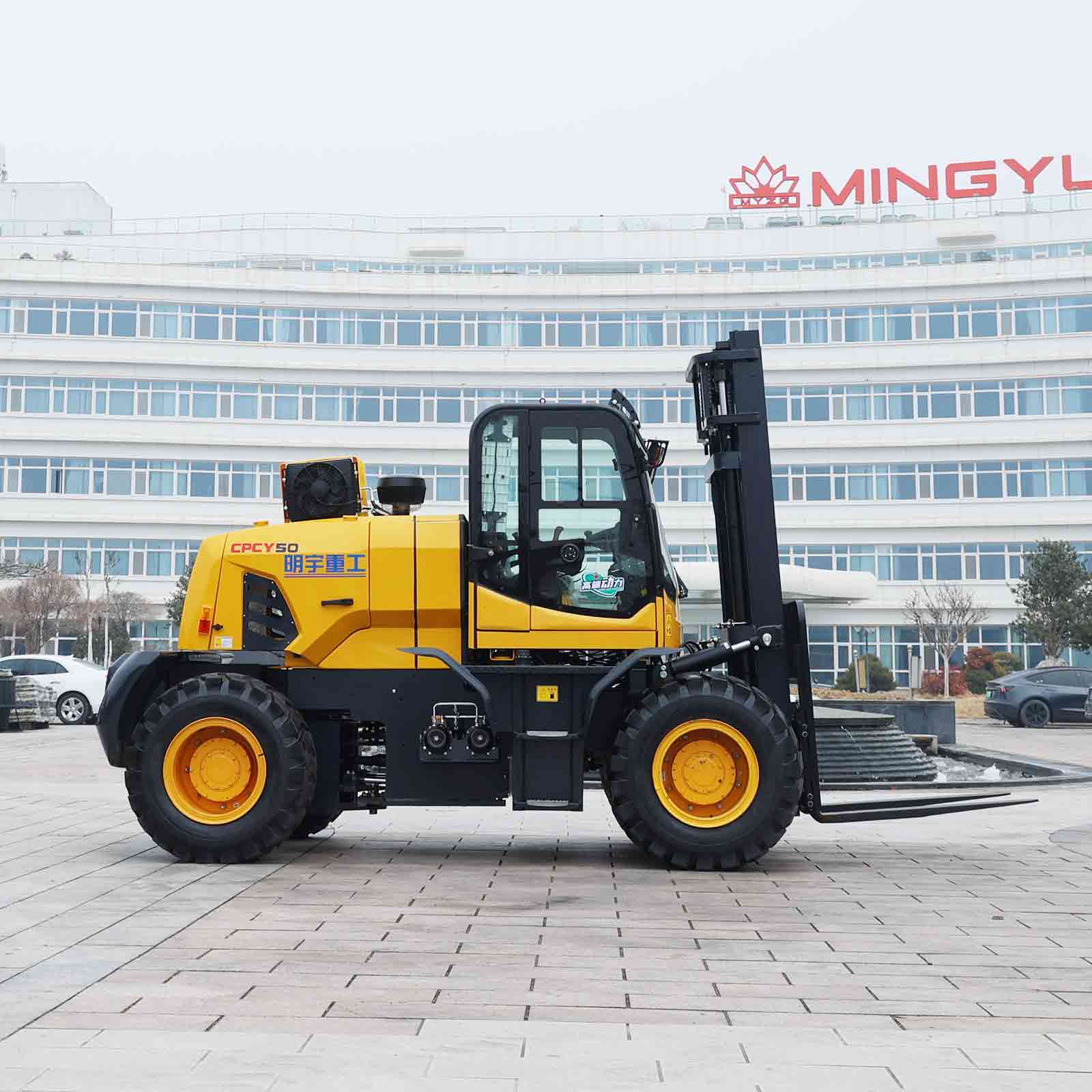

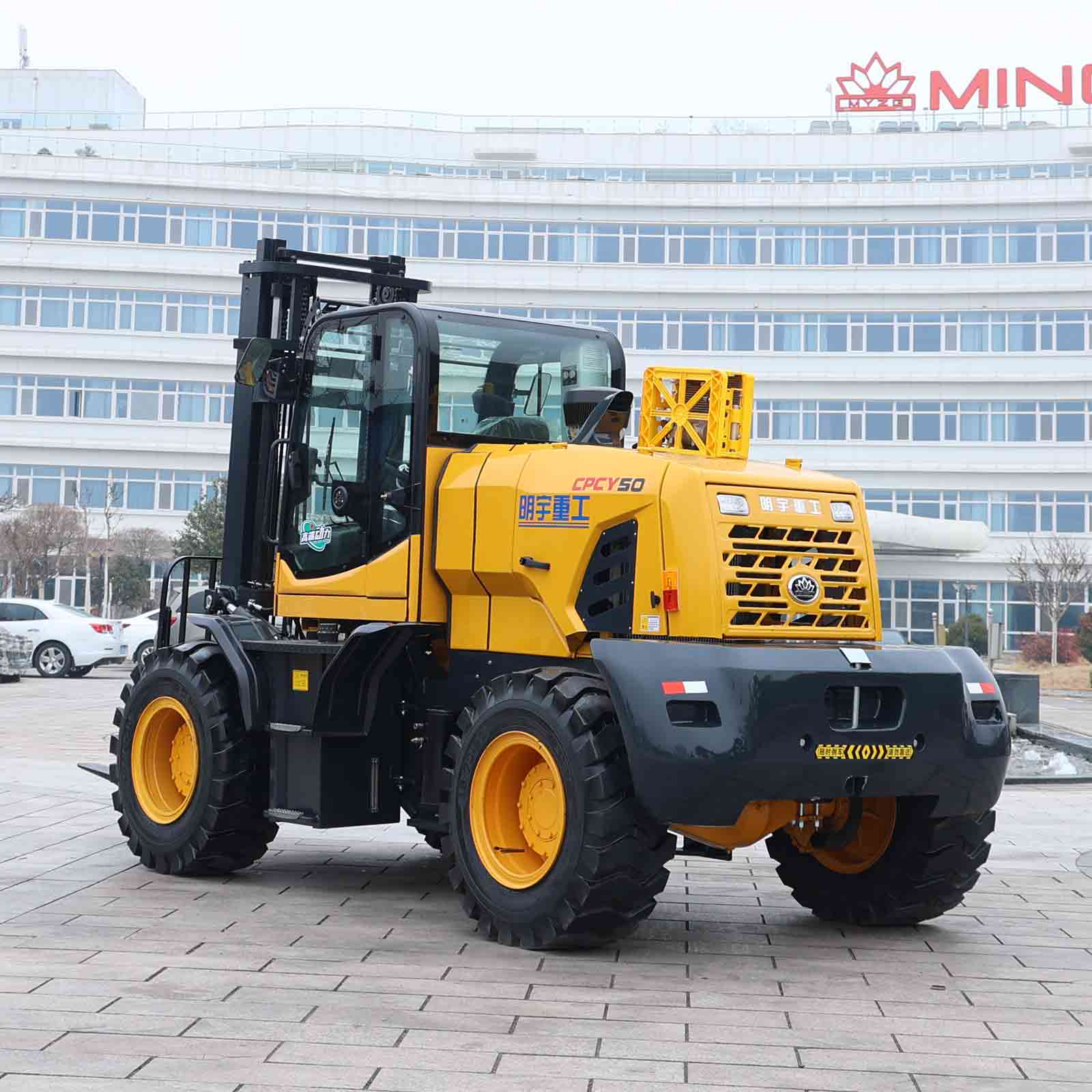

YZ50 is a 5T off-road forklift with a 4102 turbocharged engine, 4000mm standard lifting height, 5T-1220 forks, and 3480mm turning radius for outdoor heavy-load work.
| Section | Parameter | Unit | Specification | Remarks |
|---|---|---|---|---|
| General Information | Rated Load Capacity | kg | 5T | Remarks |
| General Information | Load Center Distance | mm | 610 | |
| General Information | Wheelbase | mm | 2590 | |
| General Information | Operating Weight | kg | 7130 | |
| Tyres | Tyre Model | 16/70-20 | Pneumatic tyre | |
| Tyres | Tread | mm | 1690 | |
| Engine | Engine Model | 4102 turbocharged | ||
| Engine | Rated Power | kW | 78 | |
| Engine | Torque Converter | 280 integrated torque converter | ||
| Axle | Axle Model | Fast high-strength large wheel-side axle | ||
| Axle | Dimension | mm | 3910*2080*2580 | Without fork teeth |
| Axle | Ground Clearance | mm | 230 | |
| Axle | Gantry Inclination Angle | degree | front 6 / back 10 | |
| Axle | Standard Lifting Height | mm | 4000 | |
| Axle | Fork Length | mm | 5T-1220 | |
| Axle | Minimum Turning Radius | mm | 3480 | |
| Performance | Maximum Driving Speed | km/h | 28 | |
| Performance | Maximum Lifting Speed | m/s | 0.34 |
Shandong MINGYU Heavy Industry Machinery Co., Ltd. manufactures wheel loaders, forklifts, telehandlers, excavators, backhoe loaders and electric equipment for construction, agriculture, logistics, rental and dealer markets worldwide.
MINGYU provides professional equipment configuration and shipping support according to each customer’s working conditions and project requirements. Before delivery, we help confirm the suitable model, power type, attachments, spare parts, and loading plan to ensure the machine is ready for practical use.
For export orders, our team can arrange secure packaging, container loading, and logistics solutions to support safe and efficient transportation. From equipment preparation to shipment, we focus on making the delivery process clear, reliable, and worry-free for customers worldwide.
MINGYU offers wheel loaders, electric loaders, diesel forklifts, lithium-battery forklifts, off-road forklifts, telehandlers, excavators, and backhoe loaders for construction, logistics, mining, municipal projects, ports, and other working conditions.
Diesel machines are suitable for heavy-duty outdoor work and long operating hours. Electric machines are a good choice for low-noise, low-emission, indoor, or environmentally sensitive applications.
Off-road forklifts are designed for rough ground such as construction sites, gravel roads, farms, timber yards, and mining areas. They offer stronger mobility than standard forklifts on uneven surfaces.
A telehandler provides higher lifting reach and forward extension, making it suitable for high-position loading, material handling over obstacles, and multi-angle operations. Standard forklifts are mainly used for regular pallet handling on flat ground.
Yes. Customers can choose suitable models or configurations based on load capacity, lifting height, power type, working environment, attachments, and application requirements.
Yes. MINGYU provides pre-sales consultation, model selection support, technical assistance, spare parts supply, maintenance guidance, warranty support, and logistics solutions.
