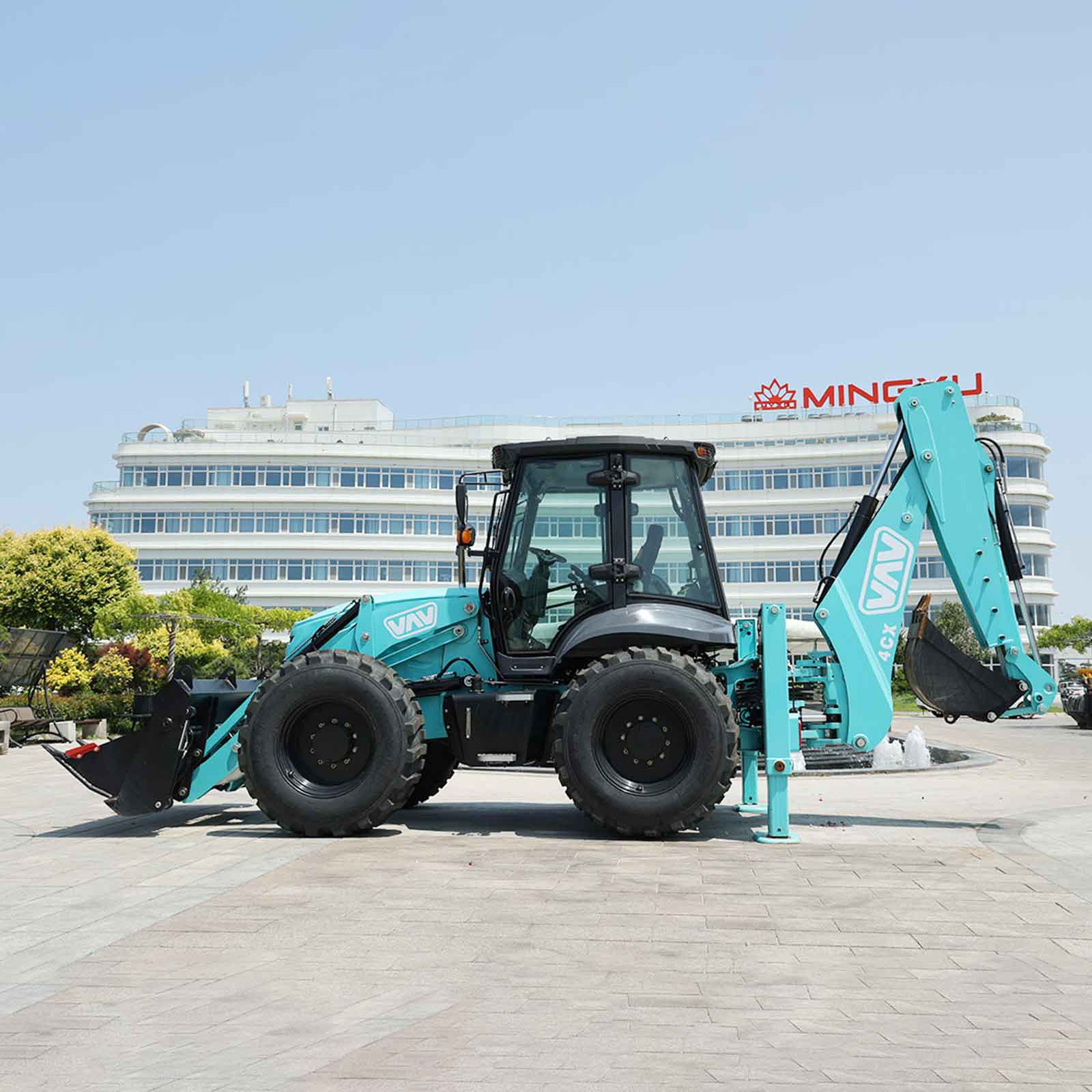

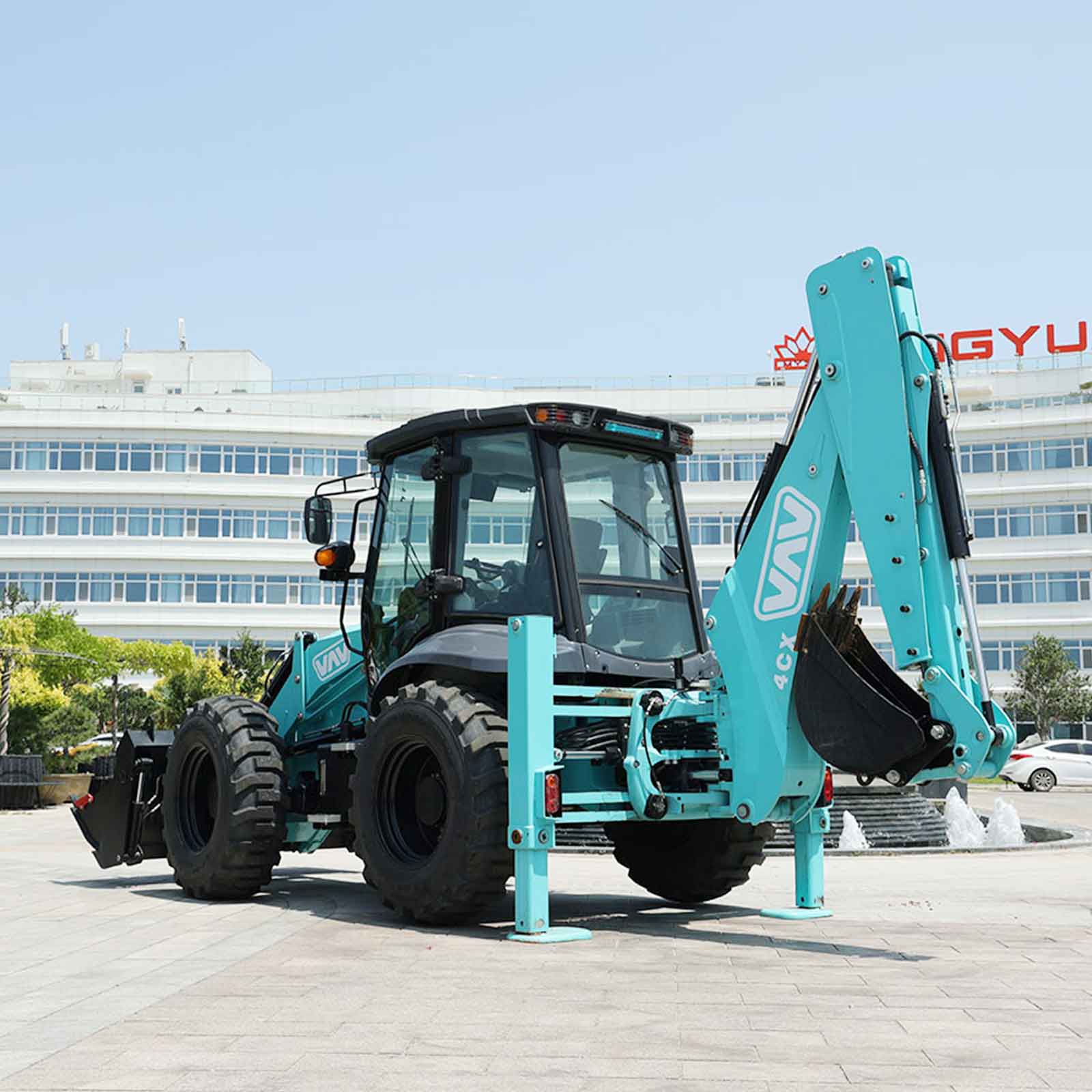

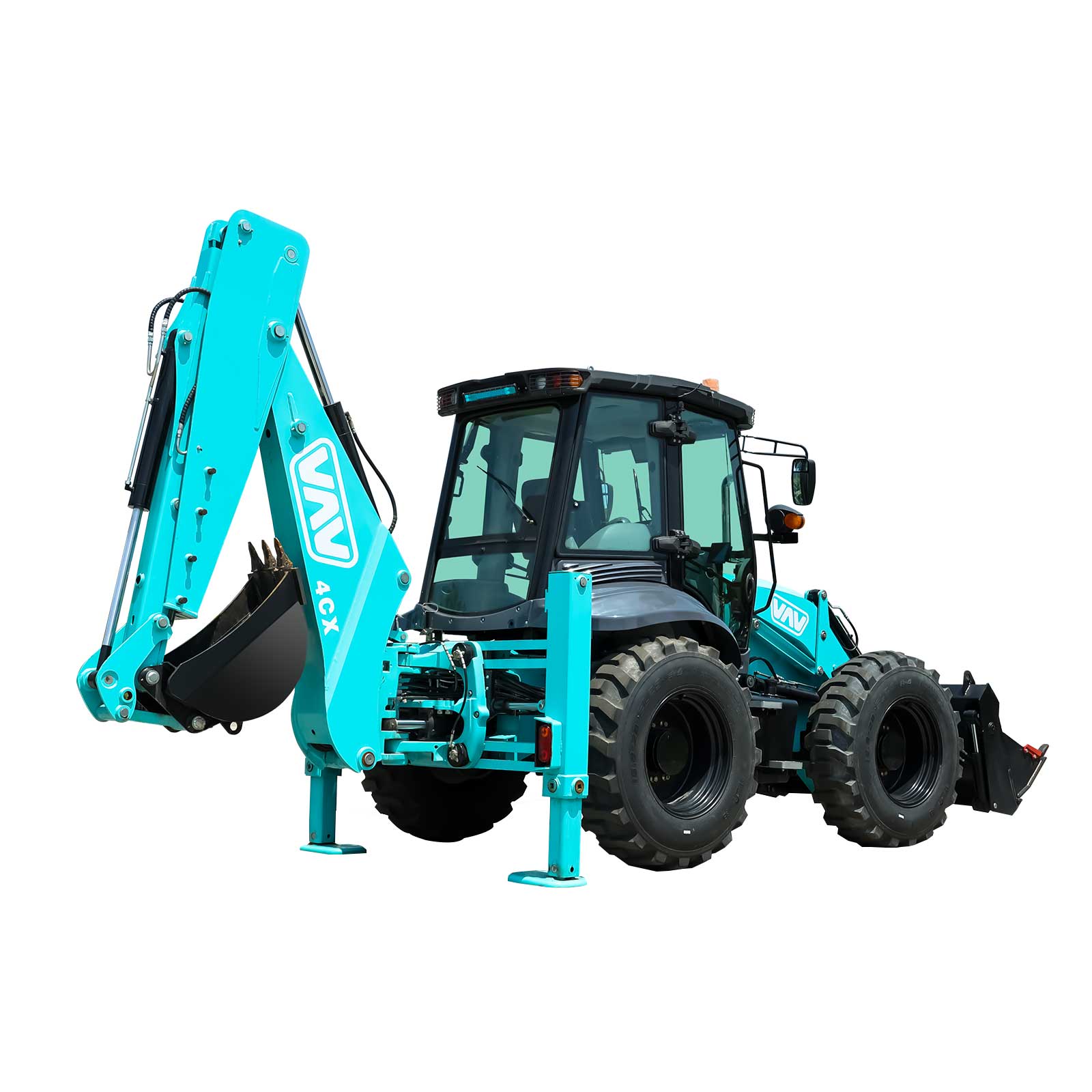

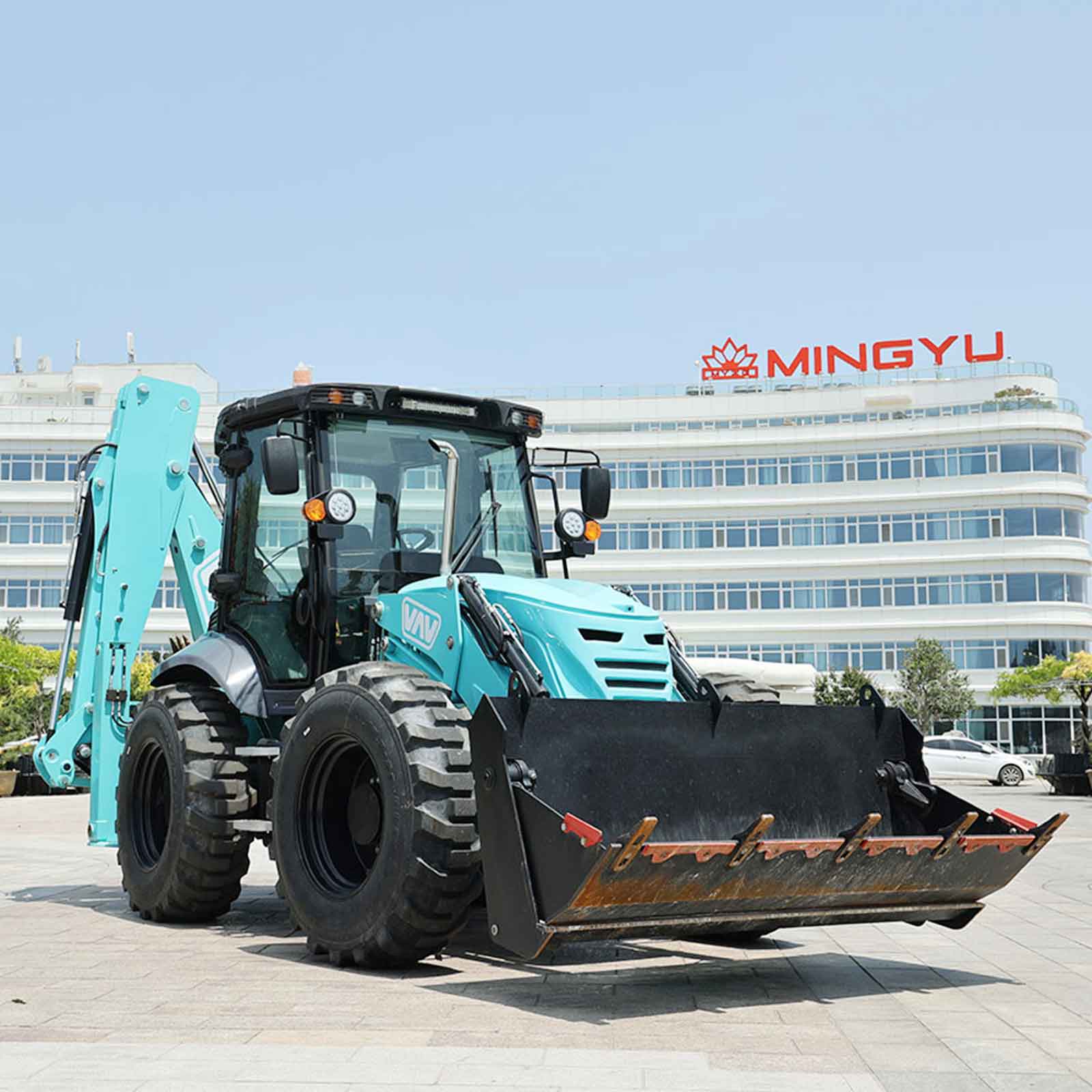

The Backhoe Loader WZ388H is a 10050kg diesel backhoe loader with a 1.2m3 loader bucket, 2500kg loader lifting capacity, 3820mm backhoe digging depth, and a 75kW Yuchai engine.
| Section | Parameter | 388 | 388H |
|---|---|---|---|
| Overall Dimension | Operating Weight | 8360kg | 10050kg |
| Overall Dimension | Overall Dimension (L*W*H) | 6050*2465*3152mm | 6450*2530*3120mm |
| Overall Dimension | Wheelbase | 2300mm | 2335mm |
| Overall Dimension | Wheel Tread | 1890/1780mm | 2050mm |
| Overall Dimension | Ground Clearance | 300mm | 450mm |
| Performance | Loader Bucket Capacity | 1.0m3 | 1.2m3 |
| Performance | Loader Breakout Force | 47kN | 47kN |
| Performance | Loader Lifting Capacity | 2500kg | 2500kg |
| Performance | Loader Dumping Height | 2760mm | 3050mm |
| Performance | Loader Dumping Reach | 900mm | 870mm |
| Performance | Loader Digging Depth | 52mm | 52mm |
| Performance | Backhoe Bucket Capacity | 0.3m3 | 0.3m3 |
| Performance | Backhoe Bucket Digging Force | 50kN | 50kN |
| Performance | Backhoe Swing Angle | 180? | 180? |
| Performance | Backhoe Dumping Height | 3795mm | 4050mm |
| Performance | Backhoe Max Digging Depth | 4085mm | 3820mm |
| Performance | Max. Traction Force | 60kN | 86kN |
| Engine | Model | Yuchai YC4A105Z-T20 | Yuchai YC4A105Z-T20 |
| Engine | Type | Inline, direct injection, water-cooled, turbocharged, 4-stroke | Inline, direct injection, water-cooled, turbocharged, 4-stroke |
| Engine | Cylinder – Inner Diameter * Stroke | 4-108*132 | 4-108*132 |
| Engine | Rated Power | 75kW | 75kW |
| Engine | Rated Speed | 2200r/min | 2200r/min |
| Engine | Min. Fuel Consumption | 230g/kW.h | 230g/kW.h |
| Engine | Max. Torque | 400N.m | 400N.m |
| Engine | Displacement | 4.8L | 4.8L |
| Steering System | Type | Hydraulic steering | Hydraulic steering |
| Steering System | Diverter Model | BZZ5-250 | BZZ5-250 |
| Steering System | Pump Delivery | 63ml/r | 63ml/r |
| Steering System | Steering Angle | ?36? | ?35? |
| Steering System | Min. Turning Radius | 6581mm | 6950mm |
| Driving Axle | Model | WZZD75D | WZL100DF |
| Driving Axle | Manufacturer | China axle | China axle |
| Driving Axle | Max. Load of Front Axle | 22.5T | 13T |
| Driving Axle | Max. Load of Rear Axle | 18.5T | 13T |
| Transmission | Gearbox | Mechanically Operated Hydraulic Synchronized Shift | Mechanically Operated Hydraulic Synchronized Shift |
| Transmission | Model | ZL15 | ZL15 |
| Transmission | Gears | 2 forward and 2 reverse gears | 4 forward and 4 reverse gears |
| Transmission | Hydraulic Torque Converter | YJ290 | YJ320 |
| Transmission | Inlet Pressure | 0.4-0.65MPa | 0.4-0.65MPa |
| Transmission | Outlet Pressure | 1.5-1.8MPa | 1.6-1.9MPa |
| Transmission | Cooling Mode | Oil-cooling pressure circulation | Oil-cooling pressure circulation |
| Transmission | Pump Delivery | 40ml/r | 40ml/r |
| Tyre | Front / Rear Model | 14-17.5 / 19.5L-24 | 16.9-28 |
| Tyre | Front Tyre Pressure | 0.4MPa | 0.35MPa |
| Tyre | Rear Tyre Pressure | 0.35MPa | 0.35MPa |
| Tyre | Travel Speed | 24km/h | 36km/h |
| Brake System | Service Brake | Air over oil caliper, external, self-regulation, self-balance | Gas-pushed oil, built-in self-regulation, self-balance |
| Brake System | Parking Brake | Manual brake | Manual brake |
| System Pressure | Loading Hydraulic System | 19MPa | 20MPa |
| System Pressure | Digging Hydraulic System | 19MPa | 20MPa |
| System Pressure | Steering Hydraulic System | 14MPa | 14MPa |
