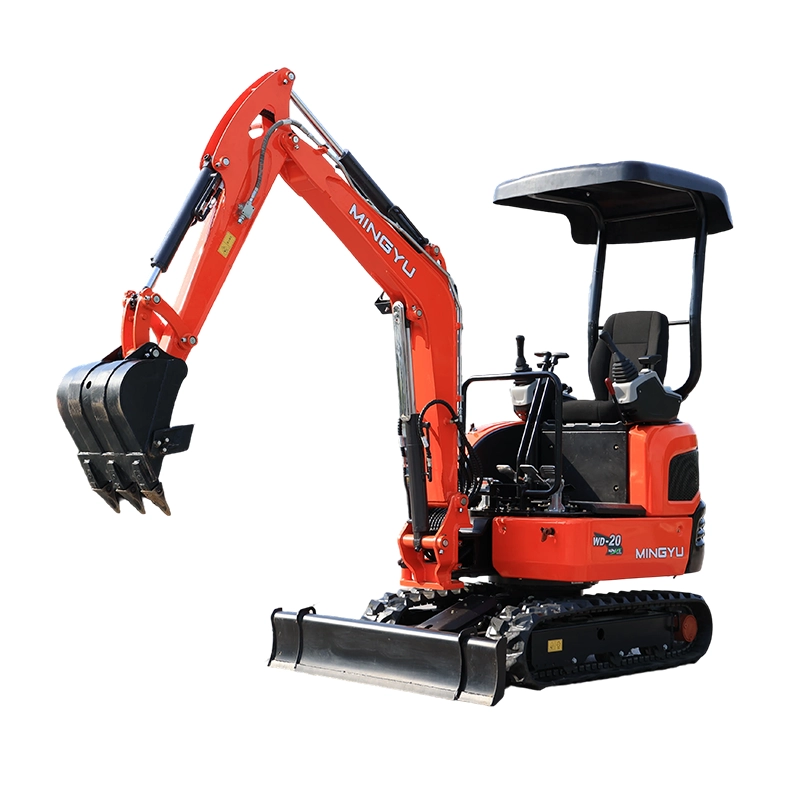

WD20 Mini Excavator with 1,790 kg listed WD20-J gross weight and 1,880 kg listed WD20-L gross weight. Compare specifications and request a quote.
The WD20 mini excavator is listed with 1,790 kg listed WD20-J gross weight, 1,880 kg listed WD20-L gross weight and 2,220 mm maximum digging depth. Use these specifications to compare the machine with your operating requirements and request a configuration-specific quotation.
The table distinguishes WD20-J with a Kubota D902 engine from WD20-L with a Laidong engine. Their listed gross weights and rated powers differ, so confirm the required version in your inquiry.
| Parameter | Unit | WD20-J | WD20-L |
|---|---|---|---|
| Gross Weight | kg | 1790 | 1880 |
| Rated Bucket Capacity | m3 | 0.04 | |
| Engine | Kubota D902 | Laidong 385 KM385B-216A | |
| Rated Power | kW | 11.8 (Euro V / EPA) | 18.4 (Euro V) |
| Rated Speed | RPM | 2300 | 2350 |
| Gradient Capacity / Climbing Ability | degree | 30 | |
| Main Valve | Load-sensitive | ||
| Overall Length / Transport Length | mm | 3623 | |
| Overall Width | mm | 1020/1350 | |
| Upper Structure Width | mm | 1020 | |
| Overall Height | mm | 2517 | |
| Track Width | mm | 230 | |
| Track Gauge | mm | 750/1120 | |
| Minimum Ground Clearance | mm | 155 | |
| Tail Swing Radius | mm | 939 | |
| Track Ground Contact Length | mm | 1190 | |
| Track Length | mm | 1577 | |
| Maximum Digging Height | mm | 3372 | |
| Maximum Dump Height | mm | 2386 | |
| Maximum Digging Depth | mm | 2220 | |
| Maximum Digging Reach | mm | 4055 | |
| Minimum Swing Radius | mm | 1886 | |
| Height at Minimum Swing Radius | mm | 2606 |
Check digging depth and reach against the planned trench or excavation, then compare machine width and transport dimensions with site access. Include any attachment requirements in your inquiry so hydraulic compatibility and the proposed configuration can be confirmed.
What are the main specifications of this model?
The listed specifications include 1,790 kg listed WD20-J gross weight, 1,880 kg listed WD20-L gross weight and 2,220 mm maximum digging depth. Refer to the full table for dimensions and configuration details, and ask our team to confirm the specification supplied with your order.
Which measurements matter when choosing an excavator?
Start with required digging depth and reach, entrance width, overhead clearance and transport limits. Tell us the material and intended attachment so the machine configuration can be reviewed for the task.
What information is needed for a quotation?
Send the required quantity, destination country or port, main working task and any attachment or site-access requirements. Include the required working height or depth and your preferred configuration so the quotation can identify the equipment and delivery terms clearly.
Compare more models in our excavator range, or visit service and support for assistance.
Request a quotation for Excavator WD20 with your equipment and delivery requirements.
