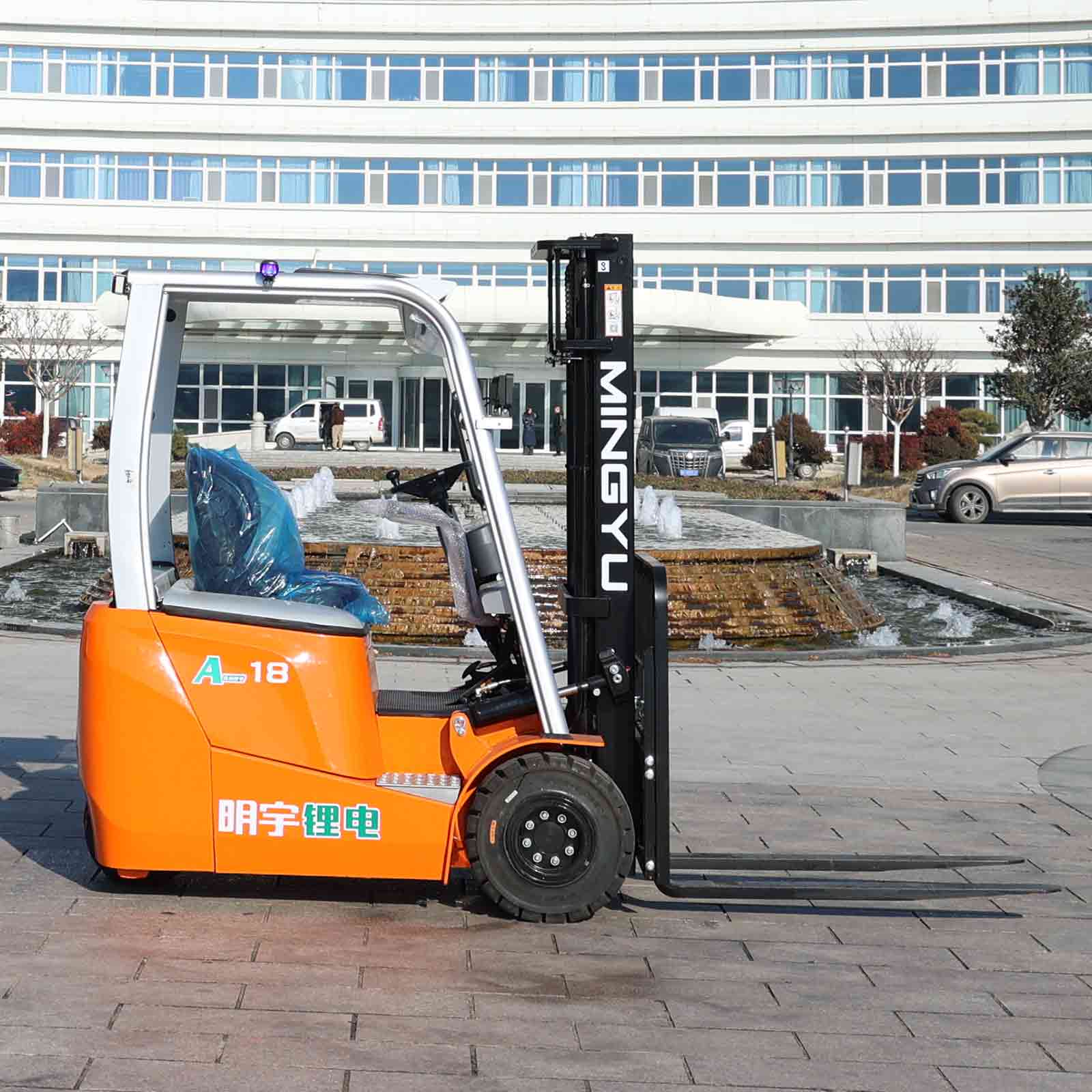

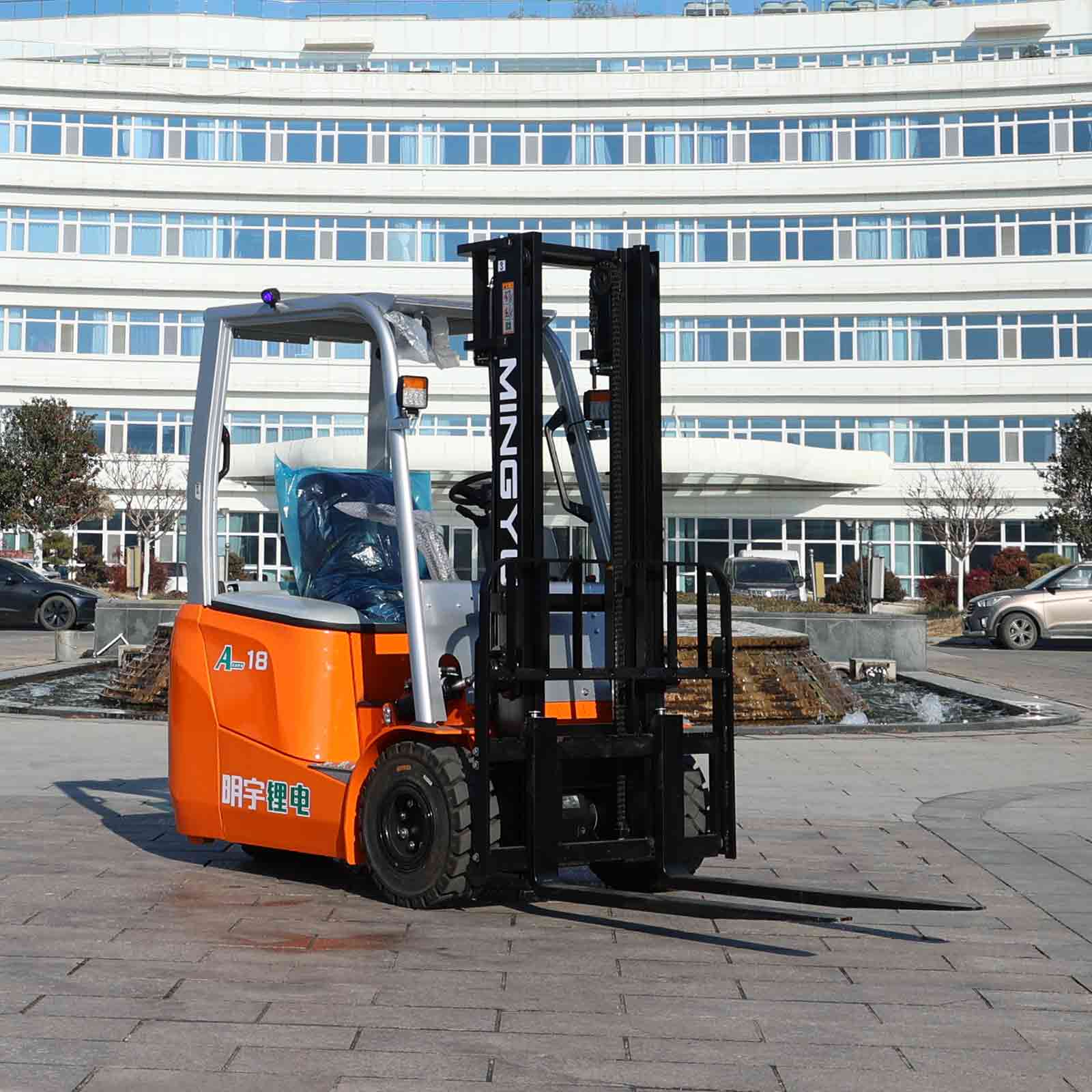

Explore the A18 three wheel forklift with 1,800 kg rated load and 3,000 mm standard lift height. Request specifications, configuration details and a quote.
The A18 three wheel forklift is listed with 1,800 kg rated load, 3,000 mm standard lift height and 80 V / 280 Ah lithium-ion battery. Use these specifications to compare the machine with your operating requirements and request a configuration-specific quotation.
This page covers the A18 three-wheel product listing. Compare its 80 V / 280 Ah battery and 1,760 mm listed minimum turning radius with the separate A18 model before selecting a version.
| Specification | Unit | Value |
|---|---|---|
| Power Type | — | Lithium-Ion |
| Rated Load Capacity | kg | 1,800 |
| Load Center Distance | mm | 500 |
| Operator Type | — | Seated |
| Overall Length with Forks | mm | 2,800 |
| Overall Length without Forks | mm | 1,870 |
| Overall Width | mm | 1,130 |
| Overall Height, Mast Lowered | mm | 2,160 |
| Overall Height, Overhead Guard | mm | 2,020 |
| Overall Height, Mast Fully Raised | mm | 4,050 |
| Wheelbase | mm | 1,335 |
| Front Overhang | mm | 370 |
| Rear Overhang | mm | 100 |
| Front Track Width | mm | 960 |
| Rear Track Width | mm | 210 |
| Minimum Ground Clearance | mm | 120 |
| Standard Lift Height | mm | 3,000 |
| Free Lift Height | mm | 80 |
| Fork Adjustment Range | mm | 260–1,100 |
| Minimum Turning Radius | mm | 1,760 |
| Minimum Right-Angle Stacking Aisle Width | mm | 3,415 |
| Mast Tilt, Forward/Backward | ° | 6/10 |
| Maximum Lifting Speed, Unloaded | mm/s | 430 |
| Maximum Lifting Speed, Fully Loaded | mm/s | 360 |
| Maximum Travel Speed, Unloaded | km/h | 15 |
| Maximum Travel Speed, Fully Loaded | km/h | 12 |
| Maximum Gradeability, Fully Loaded | % | 15 |
| Service Weight, Unladen | kg | 3,195 |
| Number of Wheels, Drive/Steer | — | 2/2 |
| Tire Type, Front/Rear | — | Pneumatic / Solid |
| Front Tire Size | — | 21×8-9 |
| Rear Tire Size | — | 15×4½-8 |
| Service Brake | — | Foot Brake |
| Parking Brake | — | Hand Brake |
| Battery Voltage/Capacity | V/Ah | 80/280 |
| Charger | V/A | 220/35, Built-In |
| Drive Motor Power | kW | 13 |
| Hydraulic Pump Motor Power | kW | 13 |
Compare the lifting requirement with the truck dimensions, turning radius and mast clearances. Include the pallet size when checking stacking space. Plan battery charging around daily shifts, available breaks and the site electrical supply rather than assuming a fixed runtime.
What are the main specifications of this model?
The listed specifications include 1,800 kg rated load, 3,000 mm standard lift height and 80 V / 280 Ah lithium-ion battery. Refer to the full table for dimensions and configuration details, and ask our team to confirm the specification supplied with your order.
What should I confirm about the battery and charger?
Confirm the battery voltage and capacity, charger input requirements, connector and intended shift pattern. Battery runtime varies with load, travel distance, lift frequency and working conditions.
What information is needed for a quotation?
Send the required quantity, destination country or port, main working task and any attachment or site-access requirements. Include the required working height or depth and your preferred configuration so the quotation can identify the equipment and delivery terms clearly.
Compare more models in our lithium battery forklift range, or visit service and support for assistance.
Request a quotation for Lithium Battery Forklift Three Wheel A18 with your equipment and delivery requirements.
