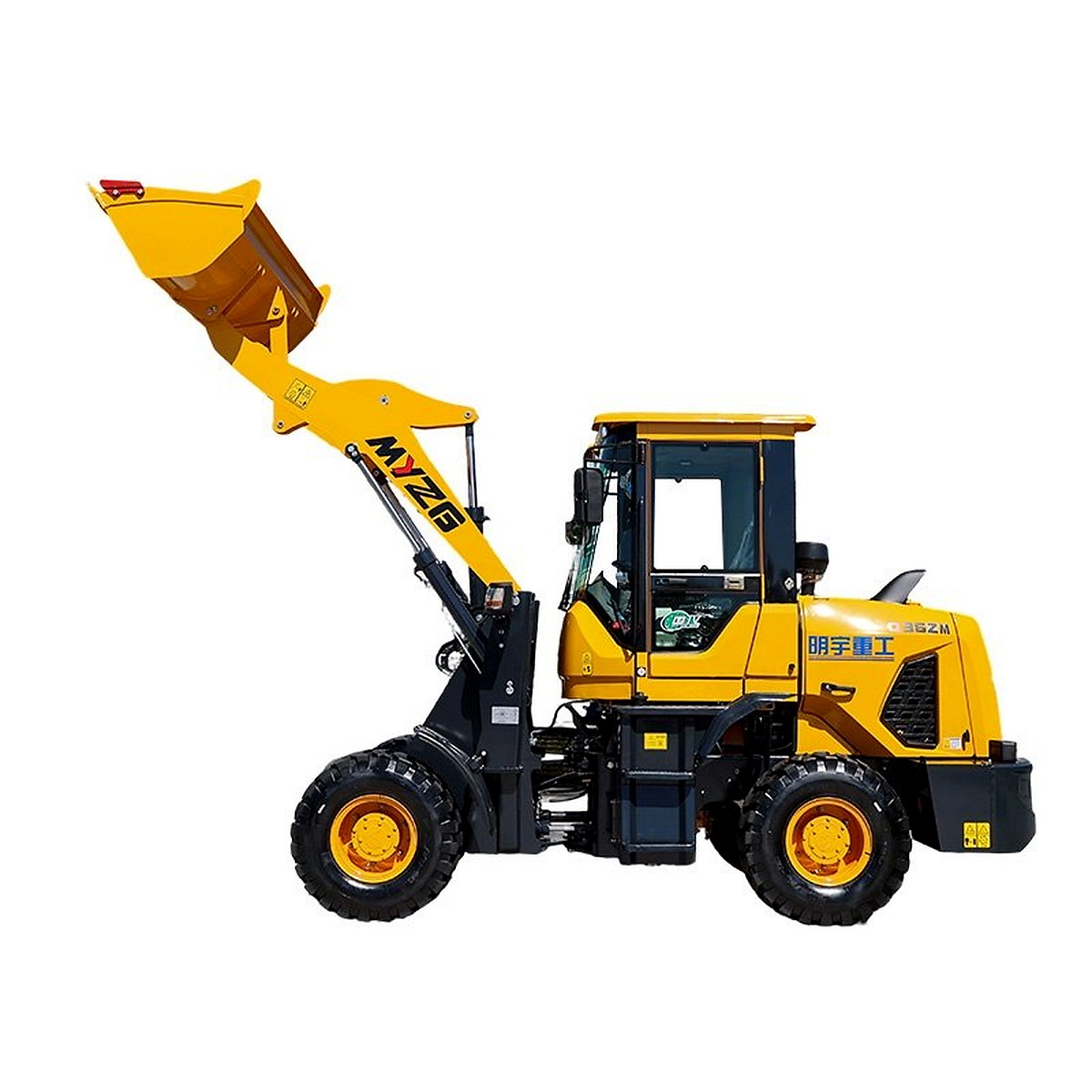

Explore the Q36Z wheel loader with 1,600 kg rated load and 0.65 m³ bucket. Request specifications, configuration details and a quote.
The Q36Z wheel loader is listed with 1,600 kg rated load, 0.65 m³ bucket and 3,300 mm dumping height. Use these specifications to compare the machine with your operating requirements and request a configuration-specific quotation.
| Parameter | Unit | Value | Remarks |
|---|---|---|---|
| Wheel loader model | Q36ZM | ||
| Rated Load Capacity | kg | 1600 | |
| Rated Bucket Capacity | m³ | 0.65 | |
| Width of bucket | m | 1.9 | |
| Operating Weight | kg | 3320 | |
| Engine Model | Sichuan 493 turbocharged | ||
| Rated Power | KW | 36.8 | |
| Rated Speed | r/min | 2400 | |
| Dumping Height | mm | 3300 | |
| Dumping Distance | mm | 540 | |
| Min. Turning Radius | mm | 2680 | |
| Wheelbase | mm | 2310 | |
| Tread | mm | 1495 | |
| Gear box type | 265 high and low speed torque converter | ||
| Dimension | mm | 5490*1900*2740 | |
| Tyre model | Small 20.5-16 | ||
| Axles | Four wheel disc brake small wheel edge stamping axle |
Compare the weight and bulk density of your material with both the rated load and bucket volume. Check the receiving vehicle height, dumping distance and turning space before selecting a loader configuration. A larger bucket does not automatically permit a heavier payload.
What are the main specifications of this model?
The listed specifications include 1,600 kg rated load, 0.65 m³ bucket and 3,300 mm dumping height. Refer to the full table for dimensions and configuration details, and ask our team to confirm the specification supplied with your order.
What should I check before selecting a bucket?
Provide the material type, bulk density and target load per cycle. Ask for confirmation of bucket compatibility, loading height and the permitted payload for the quoted configuration.
What information is needed for a quotation?
Send the required quantity, destination country or port, main working task and any attachment or site-access requirements. Include the required working height or depth and your preferred configuration so the quotation can identify the equipment and delivery terms clearly.
Compare more models in our wheel loader range, or visit service and support for assistance.
Request a quotation for Wheel Loader Q36Z with your equipment and delivery requirements.
